20000lb (9072kg) 7.3hp 24V with cable (ดูรายละเอียด)


฿26,000

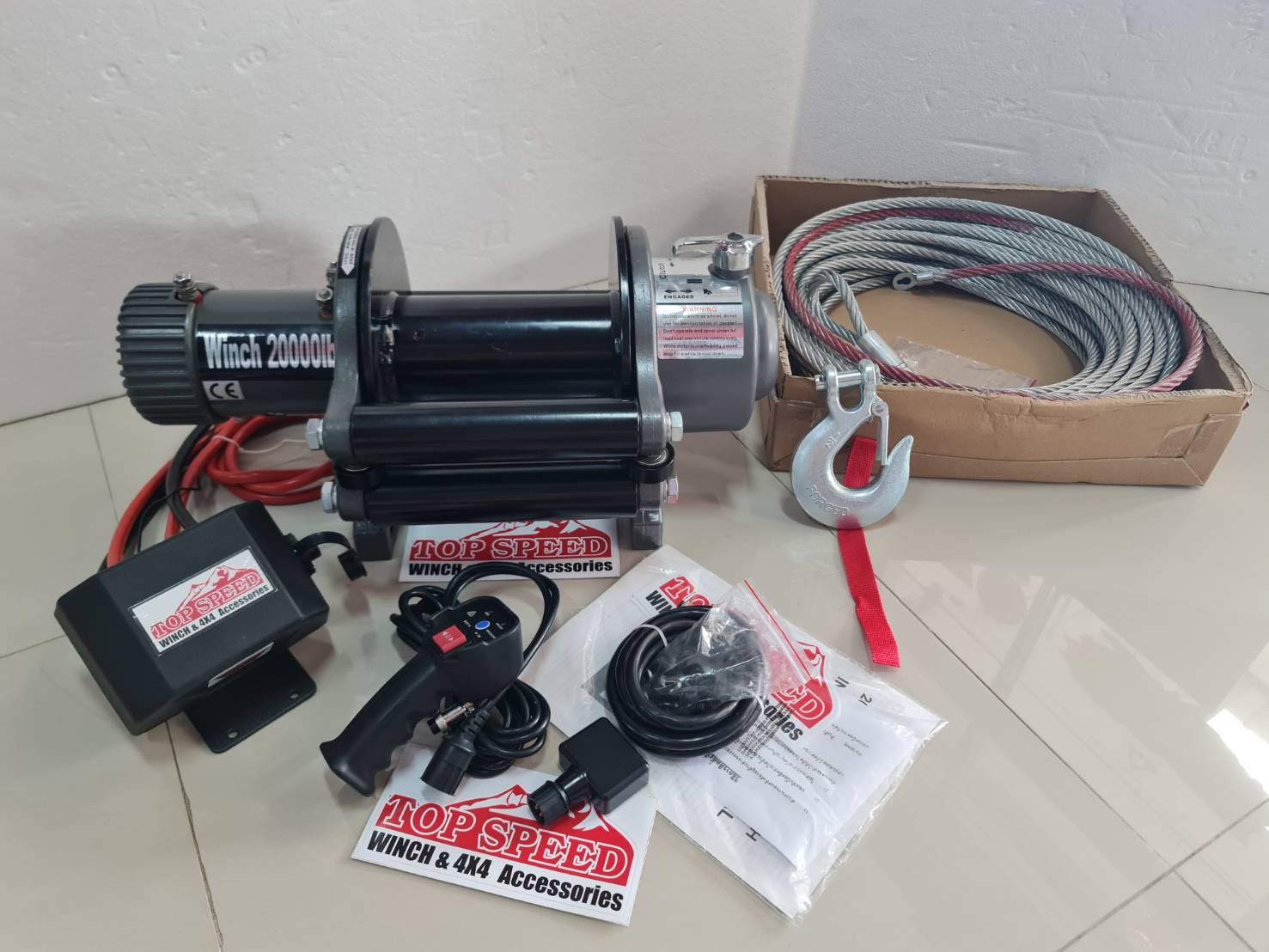

Top Speed Electric Winch

20000lb (9072kg) 7.3hp 24V Cable
รอกไฟฟ้าขนาด 20000lb (9072kg) 7.3hp 24V แบบสลิง


Winch Packing size: 60 x 38 x 40 cm. (53kgs) with out cable
Cable packing size: 46 x 46 x 15 cm. ( 24kgs)

Features and Specifications:
Rated line pull: 20000lb (9072kg) Single line
Motor:  5.5KW/7.3HP 12V, 6.0KW/8.16HP 24V, Series Wound
Control: Remote Switch, 12ft (3.7m) lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 375:1
Clutch: Sliding Ring Gear
Braking Action: Two-way, Automatic In-The-Drum
Drum Dimensions: Φ 99mm x 201.5mm
Cable (Dia X L): Φ13.5mm x 30m
Fairlead: 4-Way Roller Fairlead
Wireless Remote Control: Optional
Battery: Recommended: 650CCA minimum for winching
Battery Leads: 2 gauge,72” (1.83m)
MAX Current (No Load): ≥75A(12V) ≥65A(24V)
MAX Current (Load): ≥465A (12V) ≥410A(24V)
Overall dimensions: 565 x 310 x 280mm
Mounting hole: 254mm x 114.3mm, 254x194.3mm
