12000lb (5454kgs) 24V steelrope Gen2 (ดูรายละเอียด)


฿15,000

Top Speed Electric Winch

12000lb (5454kgs) 24V with steel rope - Gen2
รอกไฟฟ้าขนาด 12000lb (5454kgs) 24v แบบสลิง - Gen2


G.W. 40.65 Kgs.
Carton size: 61 x 35 x 26 cms.


Specification 12000lb
Waterproof: IP68 Rating
Rated Max Line Pull: 12000lbs (5454kgs) Single line
Motor: 6.5hp Series Wound
Control: Remote Switch, 12’ (3.7m) lead
Gear Train: 3-Stage Planetary
Gear Ratio: 265:1

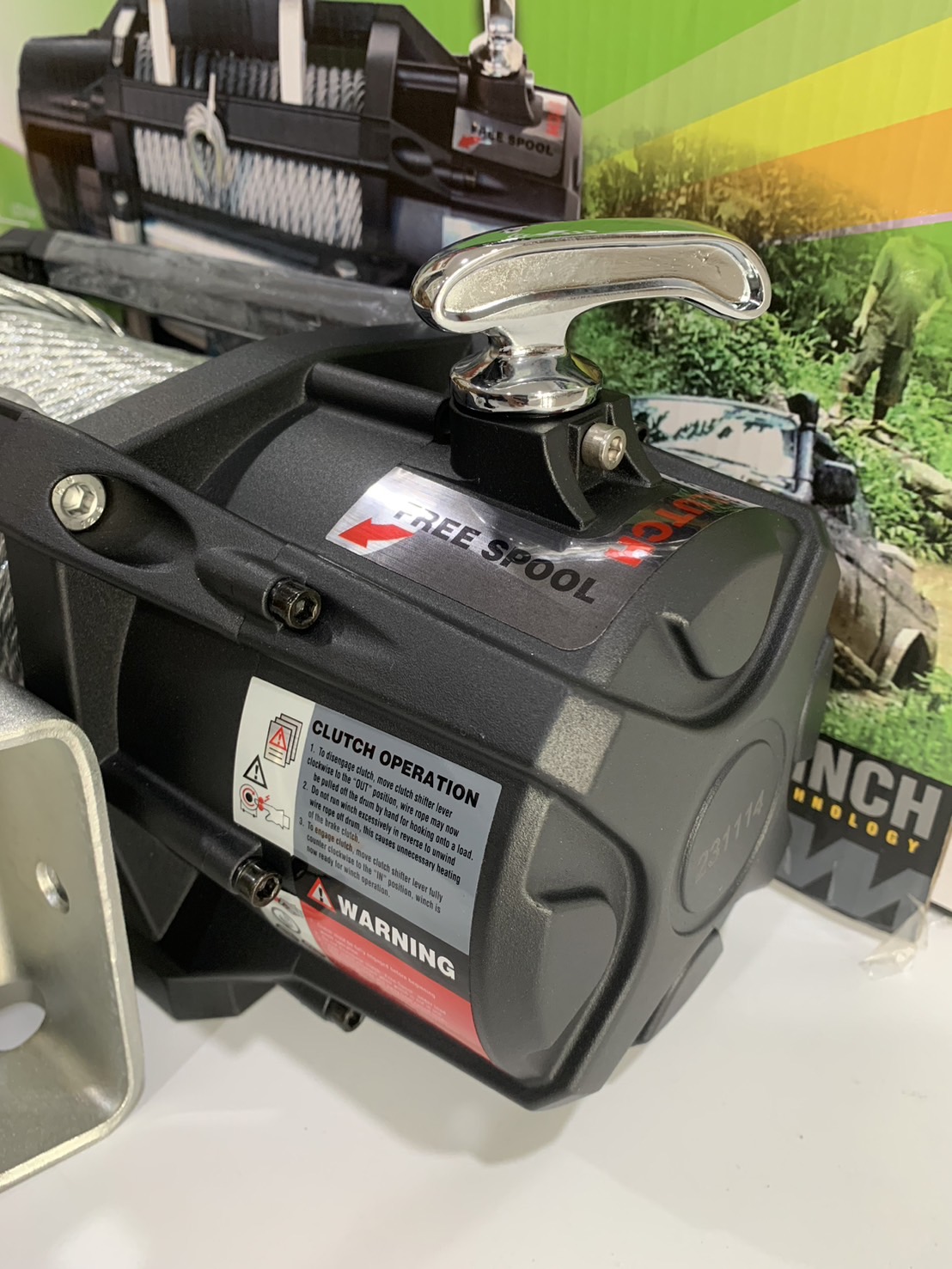

Clutch: Sliding Ring Gear
Brake: Automatic Out-Of-Drum
Drum Size: Diameter 2.5” (63mm) x Length 10.0” (254mm)
Fairlead: 4-way Roller

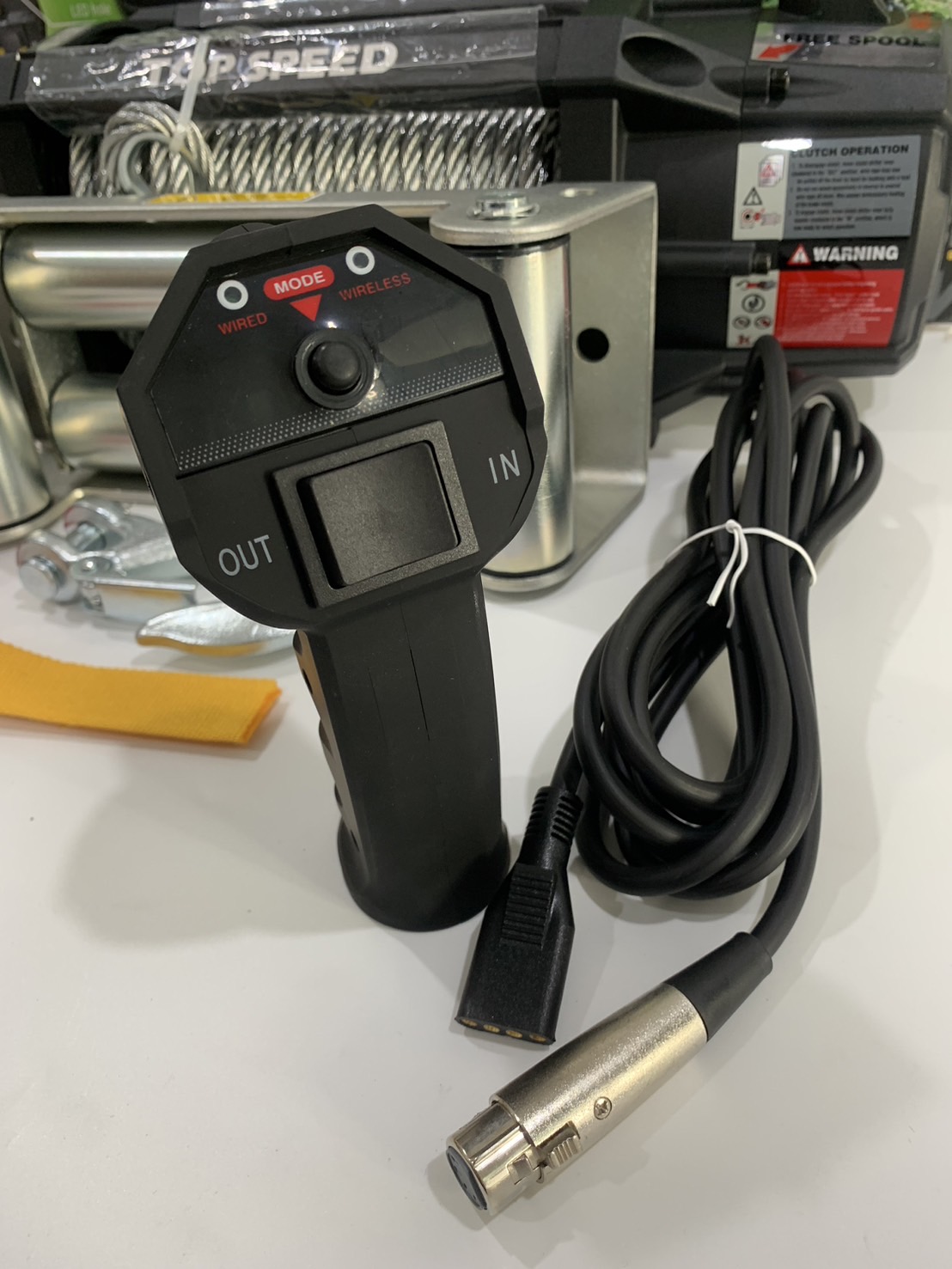

Remote Control: Integrated wireless and wired remote Included
Recommended Battery: 650CCA Minimum for Winching
Battery Leads: 25mm2 x 72” (1.83m)
Weight: 99.0lbs (45kgs)
Mounting Bolt Pattern: 10.0” (254mm) x 4.50” (114mm)
Overall Dimension: L22.3” x W5.4” x H9.4”
Cable: 26m x 9.5mm Diameter
Mounting Bolt Pattern: 254mm x 114.3mm
