Download Catalogue15500lb (6818kgs) 12V with steel rope Gen2 (ดูรายละเอียด)
Top Speed Electric Winch
15500lb (6818kgs) 12V with steel rope - Gen2
รอกไฟฟ้าขนาด 15500lb (6818kgs) 12V แบบสลิง - Gen2
รอกสลิงไฟฟ้าสำหรับรถยก, รถบรรทุกขนาดใหญ่ ยี่ห้อ Top Speed
G.W. 56.20 Kgs.
Carton size: 64 x 37 x 37 cms.
SPECIFICATION Gen2 15500LB
Waterproof: IP68 Rating
Rated Max Line Pull: 15,000lbs (6818kgs) single-line
Motor: 6.5HP Series Wound
Control: Remote Switch, 12’ (3.7m) lead
Gear Train: 3-Stage Planetary
Gear Ratio: 430:1
Clutch: Sliding Ring Gear
Brake: Automatic Out-Of-Drum
Drum Size: Φ 3.45” (88mm) x Length 10.0” (254mm)
Cable: Φ 12mm x 26m
Fairlead: 4-Way Roller Fairlead
Remote Control: Integrated wireless and wired remote Included
Recommended Battery: 650CCA Minimum for Winching
Battery Leads: 25mm2 x 72” (1.83m)

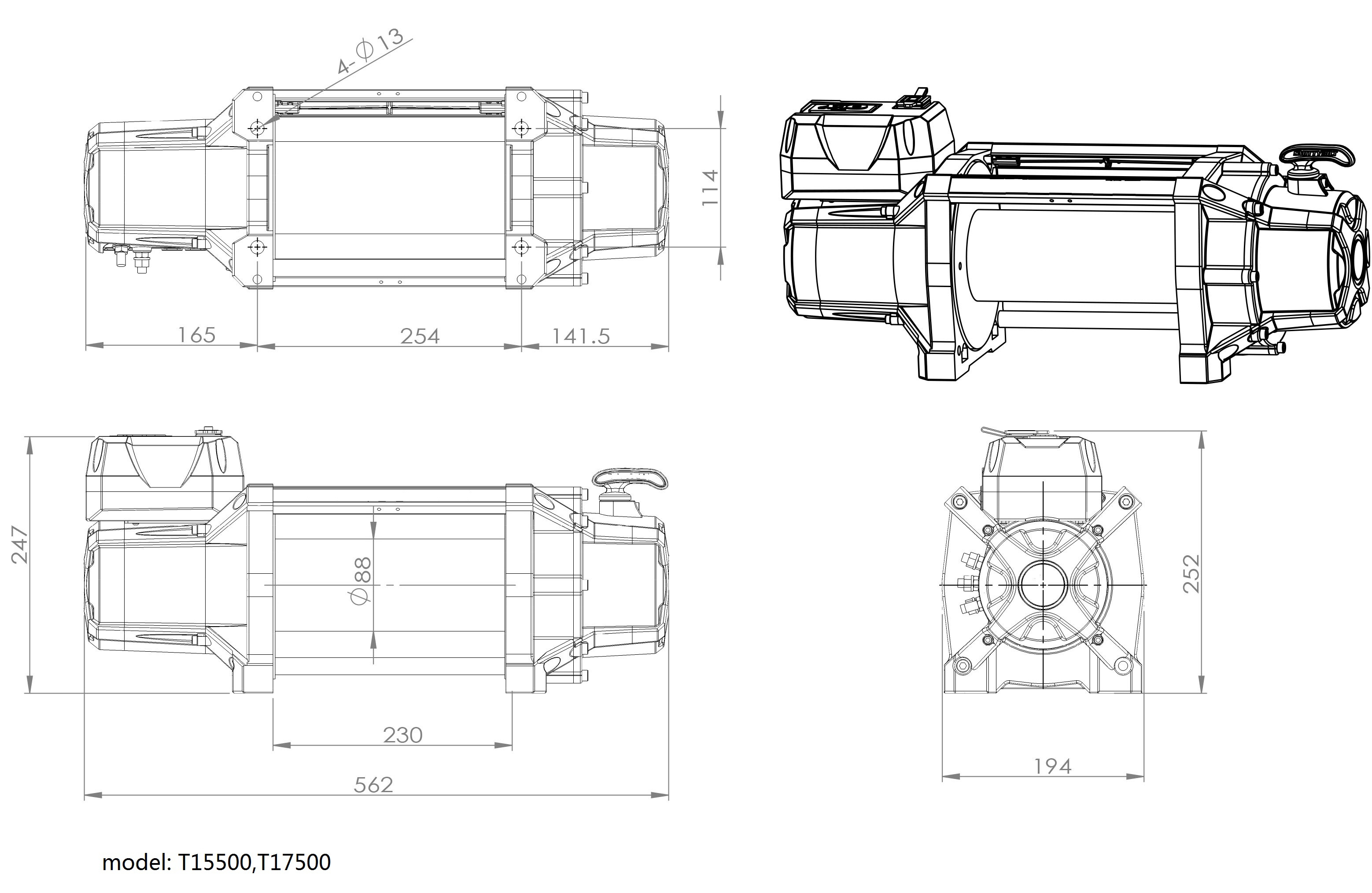

Mounting Bolt Pattern: 10.0” (254mm) x 4.50” (114mm)
Overall Dimension: L 22.3” x W 7.5” x H10.7”
Packing Size: 63 x 37 x 38 cms
Weight (Cable Winch): N.W 54.20 Kgs. / G.W 56.60 Kgs.
