Download Catalogue13500lb (6,136kg) 7.9hp 12V Synthetic Rope (ดูรายละเอียด)
Top Speed Electric Winch
13500lb (6,136kgs) 7.9hp 12V With Synthetic Rope - Gen1
รอกไฟฟ้าขนาด 13500lb (6,136Kgs) 7.9hp 12V แบบเชือก - Gen1
เหมาะสำหรับติดตั้งรถกระบะ off Road ในชุดมีทั้งรีโมทสาย / ไร้สาย ใช้งานง่าย
SPECIFICATION
Rated Single Line Pull: 13500lb (6,124kg)
Application: Vehicle Recovery / For Trucks and SUV's
Motor: 6.0HP/12V Sealed Series Wound
Power IN & OUT: Yes
Duty Cycle Rating: 5% (45 sec at Max Rated Load; 14 min, 15 sec Rest)
Pendant Controller: Wired, 12ft (3.7m) long
Geartrain: 3-Stage Plaetary
Gear Ratio: 265:1
Freespool: Sliding Ring Gear
Brake: Auto Load Holding
Drum (Dia x L): 64mm x 223mm

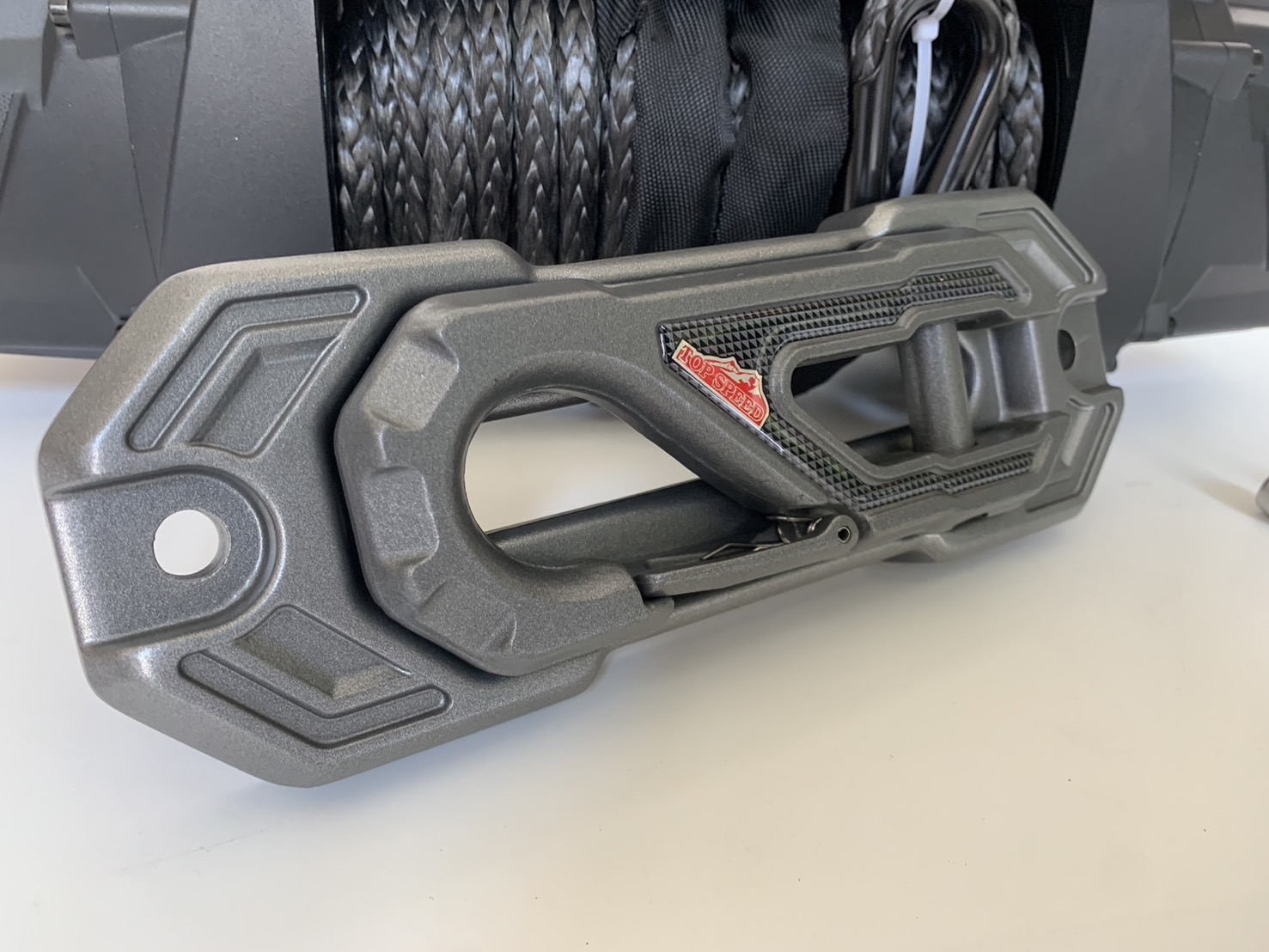

Clevis Hook: 3/8", Replaceable with Spring-loaded Safety Latch.
Fairlead: Roller with nylon bushings.
Control: Remote Switch
Wire Rope Size/ Type: Dia 10mm x 25m
Battery: 12 VDC Minimum 650 CCA
Battery Cables: Min. 2 Gauge
Mounting Bolt Pattern: 254mm x 114.3mm
Overall Dimensions (L x D x H): 547 x 160 x 267mm
Weight: 60.6lb (27.50kg)

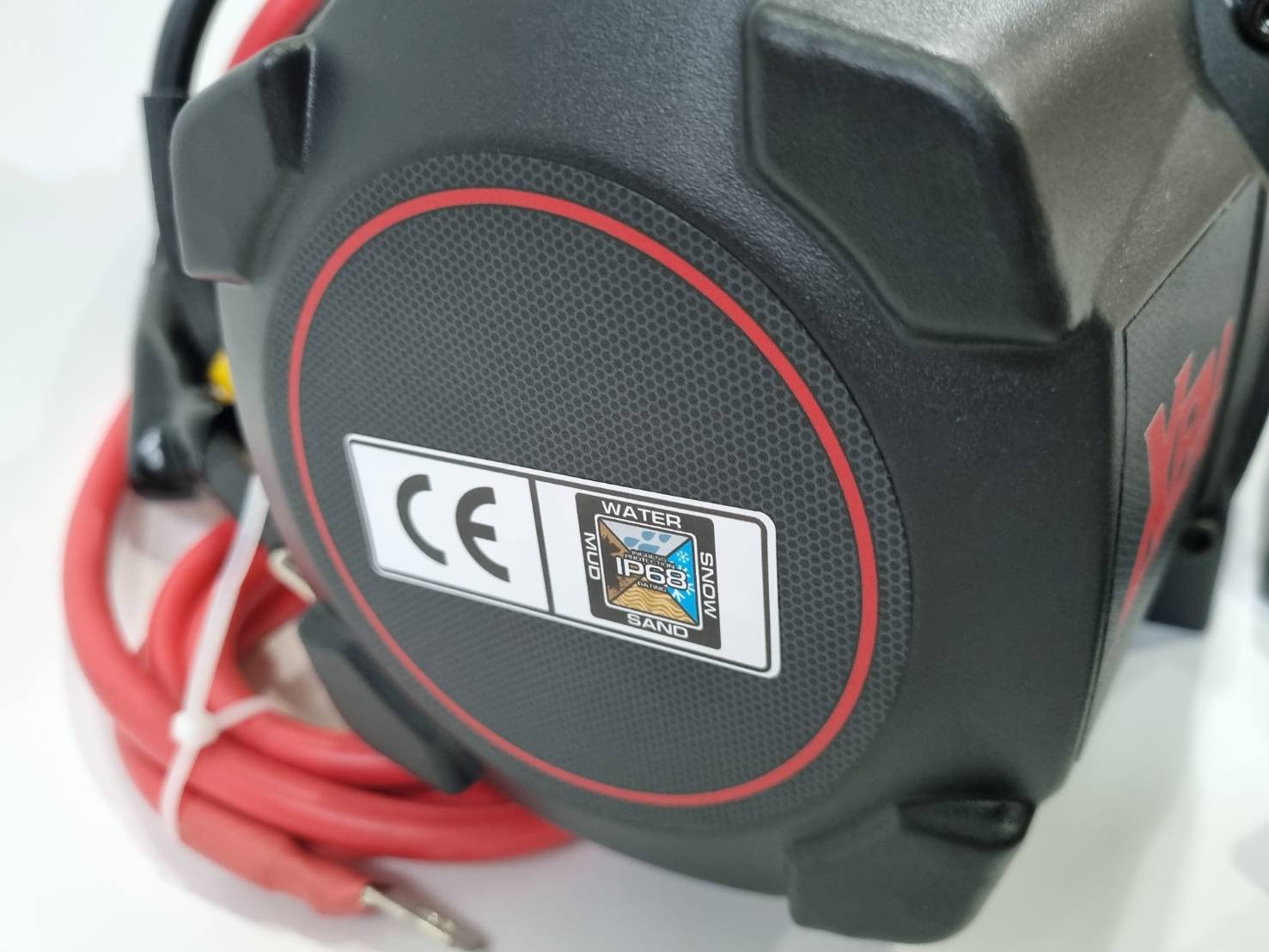

IP Rating: IP68-Winch and Controls (Resistant to powerful water jets, except remote control switch)
Sound Rating: 85 dB
Winch Certificate: CE
สั่งซื้อ / BUY
